VAR11N-300

VAR11N-300 is the professional mini WiFi repeater, and together with mini WiFi router and WiFi smart bridge that is elaborately developed by HouTian Network, the original creation D/A temperature compensated auto frequency control technology (TAFC), it solved the common failing of the traditional WiFi router or WiFi products that easily drop the network, make sure the lasting stability to ensure that the WiFi signal is not dropped. It is as an ecology and safe WiFi repeater. It is different from the traditional method that use increased the WiFi transmitter power (it will generate a strong harmful radiation) to expand the distance of WiFi transmission, but in WiFi signal coverage of failure point, place thise device as a WiFi signal repeater to re-enlarge the weak WiFi signal, and during not increasing the WiFi transmitter power, expand WiFi signal coverage, safe and ecology, it is very useful for home or office safe WiFi signal coverage. Please see the following main features:

Adopt the original creation D/A temperature compensated auto frequency control technology (TAFC), make sure the lasting stability to ensure that the WiFi signal is not dropped
Original creation VDNS virtual domain configuration technology to solve the user’s trouble of configuration.
Mini WiFi router, the whole size is less than one-half of the Bank card, very useful for both business trip and household.
Professional WiFi bridge/repeater/router three-in-one.
Support WiFi WAN in router mode.
DC5-15V power supply.
Low power, the whole power supply less than 2.5W, dedicated designed parallel DC power outlet and DC power cable, it is convenient to share power supply with other devices.

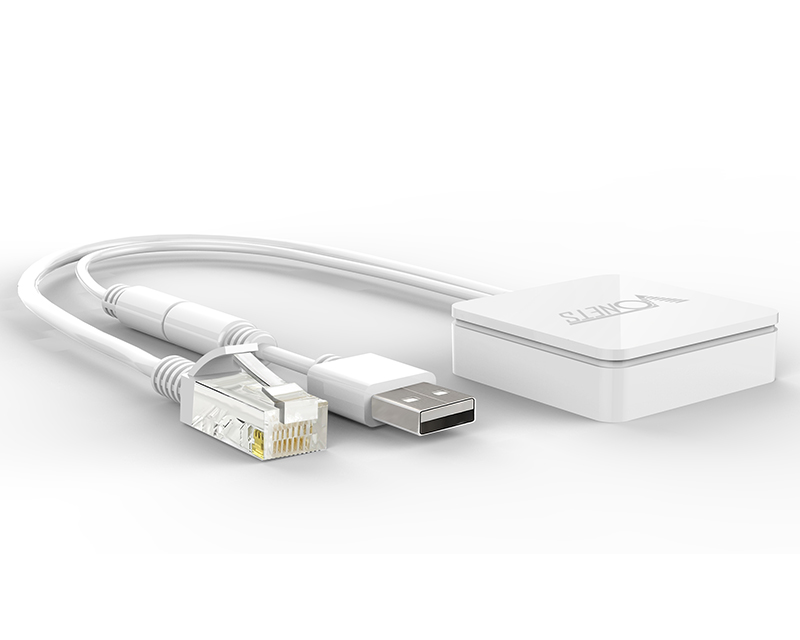

Dedicated power supply cable together with Ethernet cable two in one cable connector, reduce redundant connector, convenient for usage.

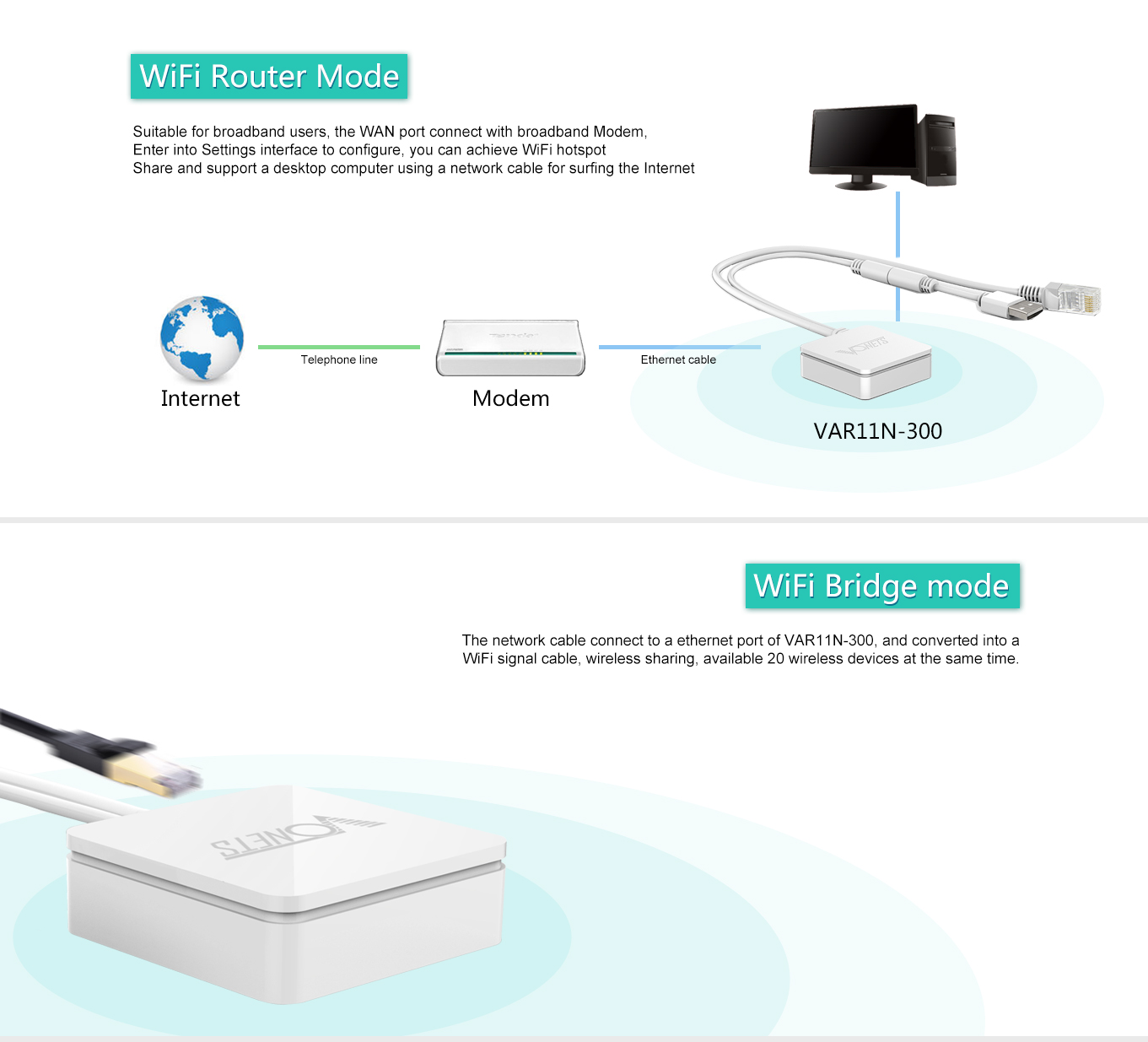

Support WiFi router mode and WiFi smart bridge mode, one key exchange device working mode
In WiFi smart bridge mode, it can smart control the device WiFi mode:
WiFi AP Client (it can be used for access from WiFi to wired Ethernet)
WiFi Hotspot (it is suitable for hotel room usage)

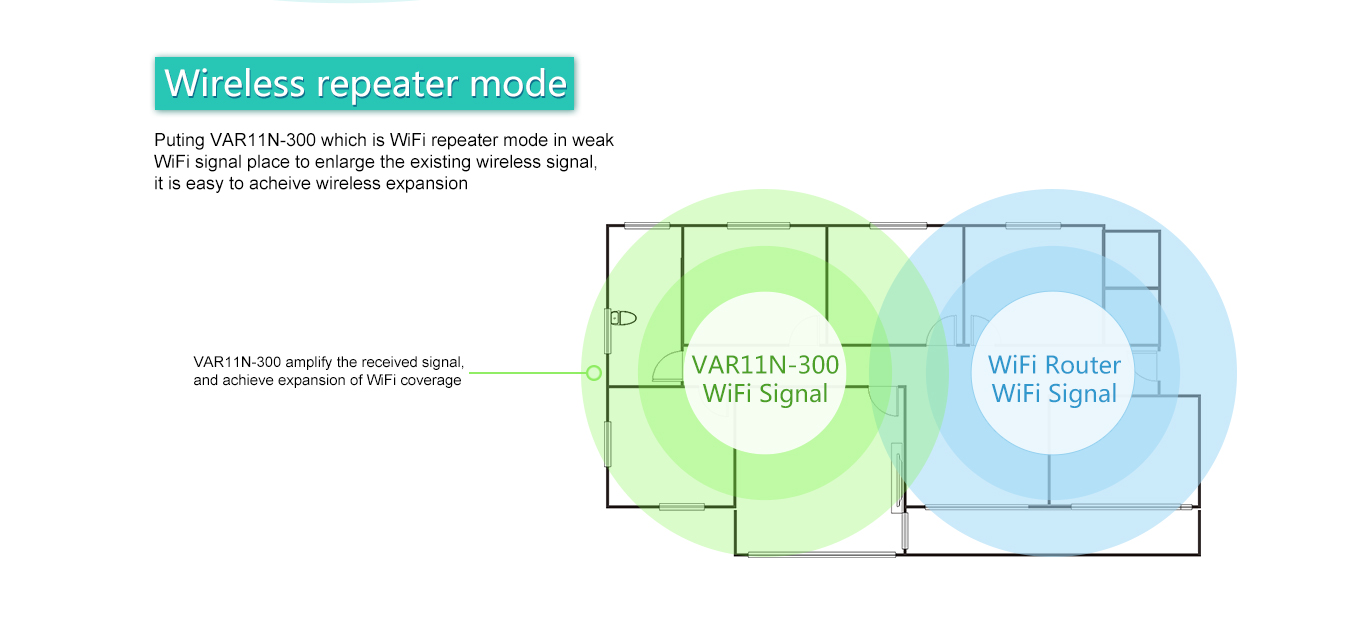

WiFi Repeater (it can extend the distance of WiFi signal coverage, ecology and safe)
In WiFi smart bridge mode, it supports WiFi hotspot scan automatically and WiFi hotspot memory function.
1 WAN, 1 LAN, two ports can interchangeable, such small volume has two ports, so unusual.
Support 802.11N WiFi transfer protocol, 300Mbps rate of transmission
Good compatibility, almost compatable with all of the smartphone, tablet computer, notebook, netbook and WiFi devices.

VAR11N-300 is a plug and play Mini WiFi router and WiFi bridge. On business trip and traveling stay at hotel, you just connect the Ethernet cable in the hotel room to Ethernet port of VAR11N-300, then connect power supply, the whole room is Wi-Fi WiFi coverage. Now, you can take out your mobile phone, PAD and other devices that support Wi-Fi, then get WiFi internet at anywhere of the room, no need any settings.

Parameters and operations of traditional WiFi router, also supports two configure mode IE browser configuration and PC dedicated software configuration (no need IP connection), the procedure is so clear and concise, without redundancy, greatly facilitates the use of different levels of users.

Hardware Spec
Protocol Standard	IEEE 802.11g. IEEE 802.11b. IEEE 802.11n
rate of transmission	300Mbps
Interface	1 10/100M adaptive Ethernet female port 1 dedicated two in one power supply cable, with a set of power supply and a set of 10/100M adaptive Ethernet cable Ethernet cable and Ethernet LAN/WAN interchangeable
Button	Reset button (Long press)
LED	Status instruction: Ethernet port status Light (Green Light); ethernet cable status Light (Green Light); Hotspot Connection Status Light (Blue Light); WiFi status Light (Blue Light)
Antenna	Built-in Smart Omnidirectional antenna
Size	43mm x 43mm x 14mm (L x W x H)

WiFi Related
Basic Function	WiFi Exchange SSID Broadcast exchange Channel option: 1-14 WiFi mode option: 802. 11n only, 802.11 B/G/n mixed, 802.11 B/G mixed, 802.11G only, 802.11B only. WiFi Hotspot scan automatically WiFi Hotspot memory WiFi WAN
Working Mode	WiFi smart bridge mode: AP Station mode (WiFi hotspot), suitable for hotel room usage AP Client mode (WiFi client), suitable for IP TV, STBs. Repeater mode (WiFi signal repeat), it can extand the distance of WiFi transfer WiFi router mode
WiFi security	WiFi MAC address filter WiFi Security function exchange 64/128/WEP encryption WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism
Wired Related
WAN port Setting	WiFi router mode: WAN port connection type support: PPPoE, Dynamatic IP, Static IP, L2TP, PPTP DDNS Client
Firewall	WiFi router mode: IP and MAC address binding against ARP attacks (WiFi router mode support) IP address filter (WiFi router mode support) Domain filter (WiFi router mode support) Mac address filter
Forward rules	Port forwarding (WiFi router mode support) Virtual Service (WiFi router mode support) DMZ Host
System function	Time service Firmware upgrade Configure file import and export Device reboot Reset factory Administrate account and password revise
