VAP11G external antenna solution
Date: 2013-1-12 Hits: 1705

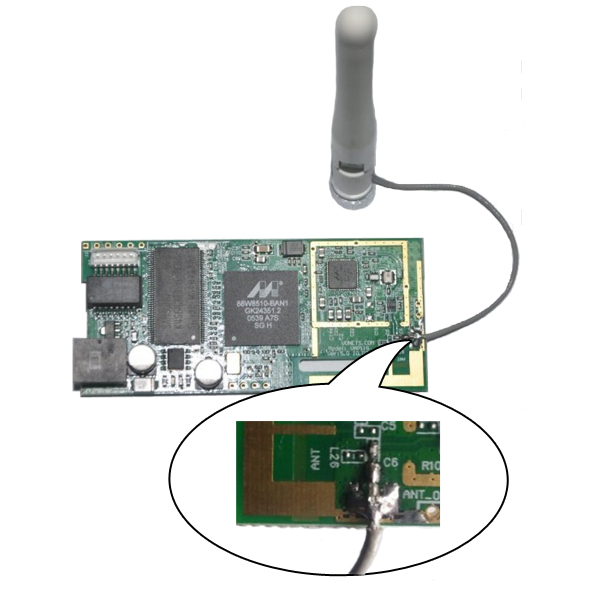

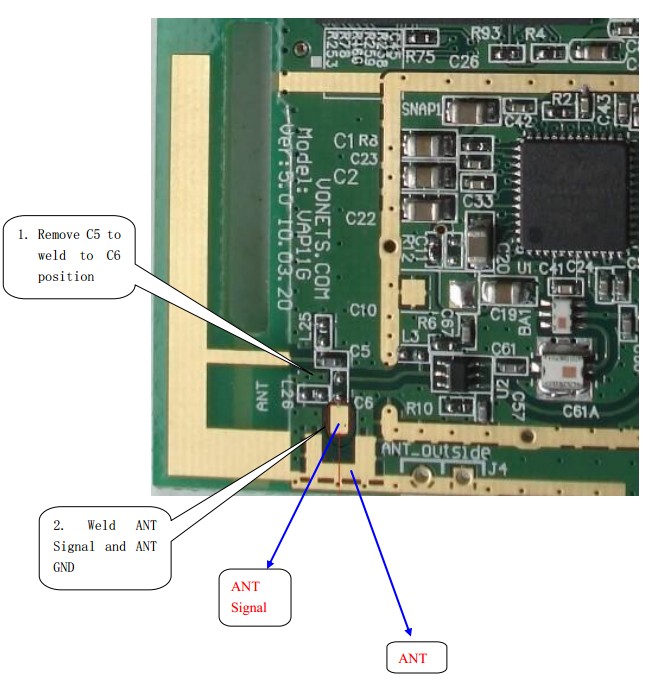

Modify external antenna, remove C5 on PCB to weld to C6 position, then weld ANT signal and ANT
GND, please see the following picture:
Modify external antenna, remove C5 on PCB to weld to C6 position, then weld ANT signal and ANT
