Hotel Application Solution (Wired Network to WiFi)
Time: 2012-12-26 Hit: 9
VAR11N is the world’s smallest, the most powerful Mini WiFi router and WiFi intelligent bridge, also a ecology and safe WiFi signal repeater (WiFi Repeater). On business trip and traveling stay at hotel, you just connect the Ethernet cable in the hotel room to Ethernet port of VAR11N, then connect power supply, the whole room is WiFi wireless coverage. Now, you can take out your mobile phone, PAD and other devices that support Wi-Fi, then get Wireless internet at anywhere of the room, no need any settings.
First: Connect VAR11N, see the following picture:
Picture 1 Picture 2
-

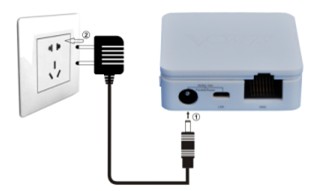

Use 5V-15V DC2.0 external power to connect DC port of VAR11N, please see the above picture 1.
-

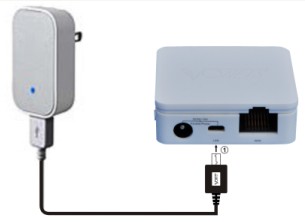

Or use power supply of mobile phone to connect USB port of VAR11N, please see the above picture 2.
Second: Connect ethernet cable:
-
Use the ethernet cable in hotel room to connect WAN port of VAR1NN, please see the following picture:

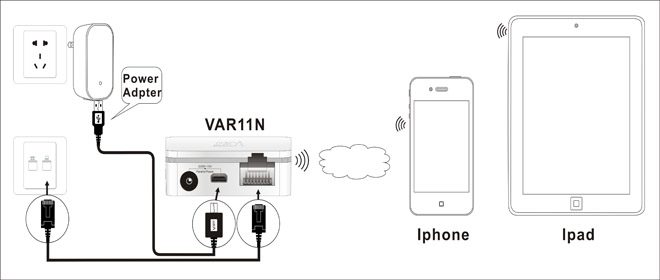

Third: Finish connection
-
The installation has been finished by the simple two steps, Now, you can take out your mobile phone, PAD and other devices that support Wi-Fi, then get Wireless internet at anywhere of the room, no need any settings.
-
Remark: 1. In router mode and bridge mode, you can connect according to the above picture and achieve the function of wired network to WiFi.
-
2. The default WiFi SSID name is VAR11N + the last six digits of VAR11N MAC address, for example: “VAR11N-15F43D”, the default is no password, user can do configuration.
