VM300
Hits:11043

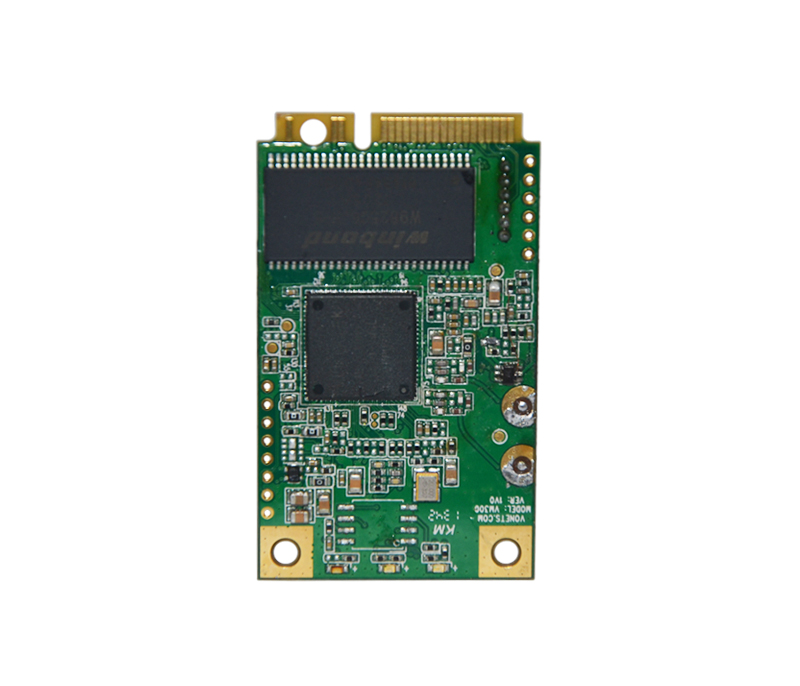

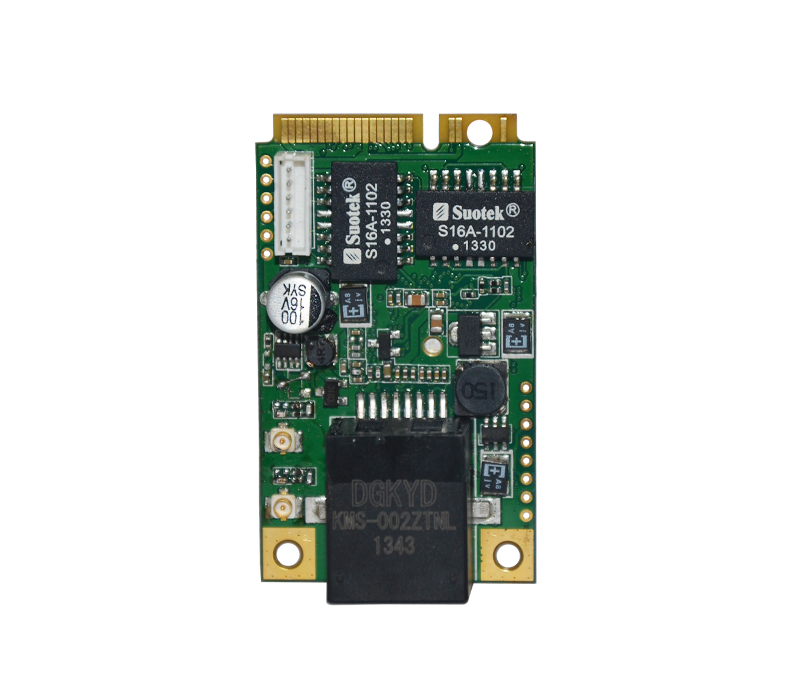

1.1 Hardware Features

  • Clocked of main chip:580MHz
  • 32Mb SDRAM,can be extended 64Mb; 4Mb SPI Flash, can be extended 8Mb(Byte).
  • WiFi working frequency:2.4GHz,2T2R dual antenna,300Mbps transmission rate.
  • Support 1-14WiFichannels.
  • Rated Power< 3W.
  • Output power of Module RF :13.5dbm--14.5dbm.
  • Adopt the original creation D/A temperature compensated auto frequency control technology(TAFC),make sure the lasting stability to ensure that the WiFi signal is not dropped.
  • Support 802.11b/g/n mode.
  • Operating ambient temperature:-25℃ ---- 55℃


 1.2 Features

  • Two software-controllable operating modes:routing mode,Bridge+Repeater mode.
  • Support intelligent transparent bridge mode, also support AP Client and AP Station.
  • Support 3G/4G Module(3G USB Dongle)
  • Independent hardware data processing,  does not consume host system resources, without installing any drivers
  • In bridge mode, fool configuration to facilitate the secondary development implanted into other host systems.
  • Built-in WEB configuration services, available configure module parameters through the web.
  • Built-in SOCKET monitoring services, used to control two GPIO (1.5A) output, nine kinds of GPIO control state to facilitate the secondary development and function expansion.
  • Support VDNS technology, in bridge mode, can be configured via logging on the domain login page, solve the problem that configure and secondary development.
  • Two external antenna RF Female.
  • Support for online firmware upgrade.
  • Support open-wrt.
