VRP300-PLUS
Hits:2296

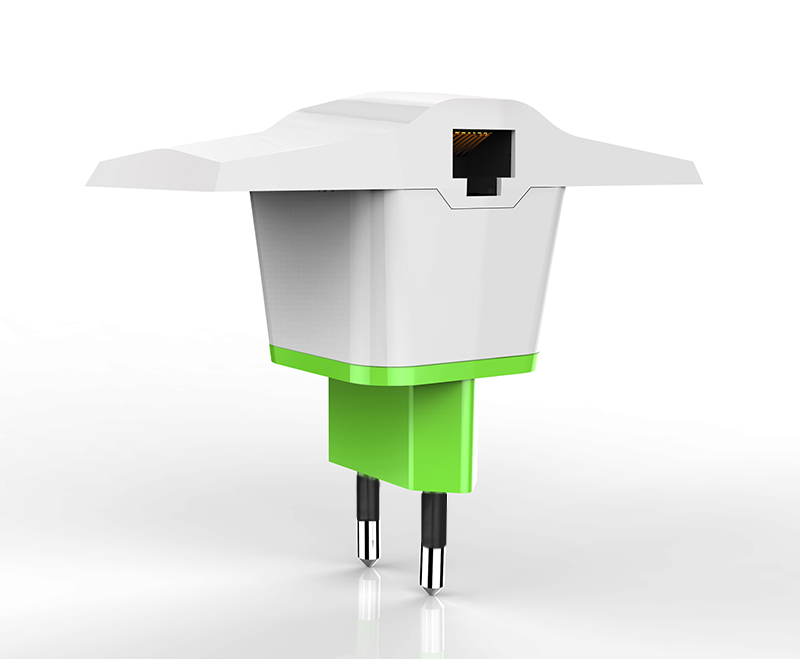

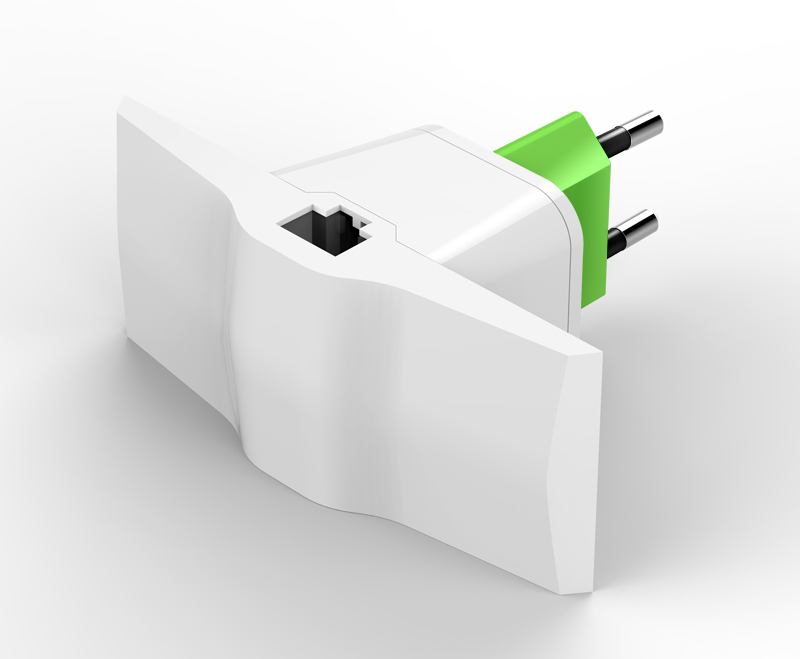

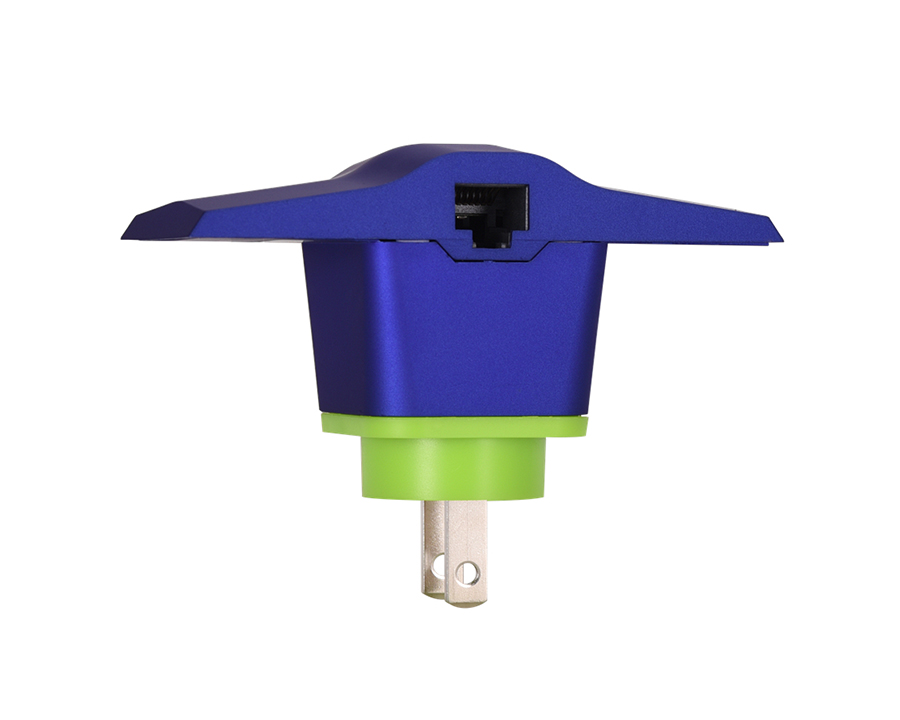

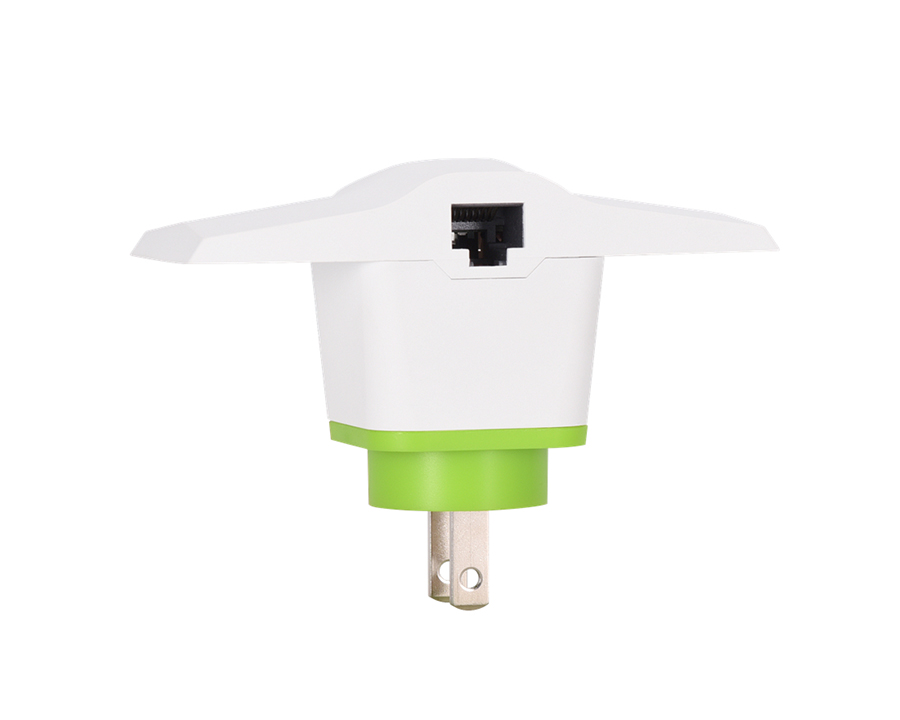

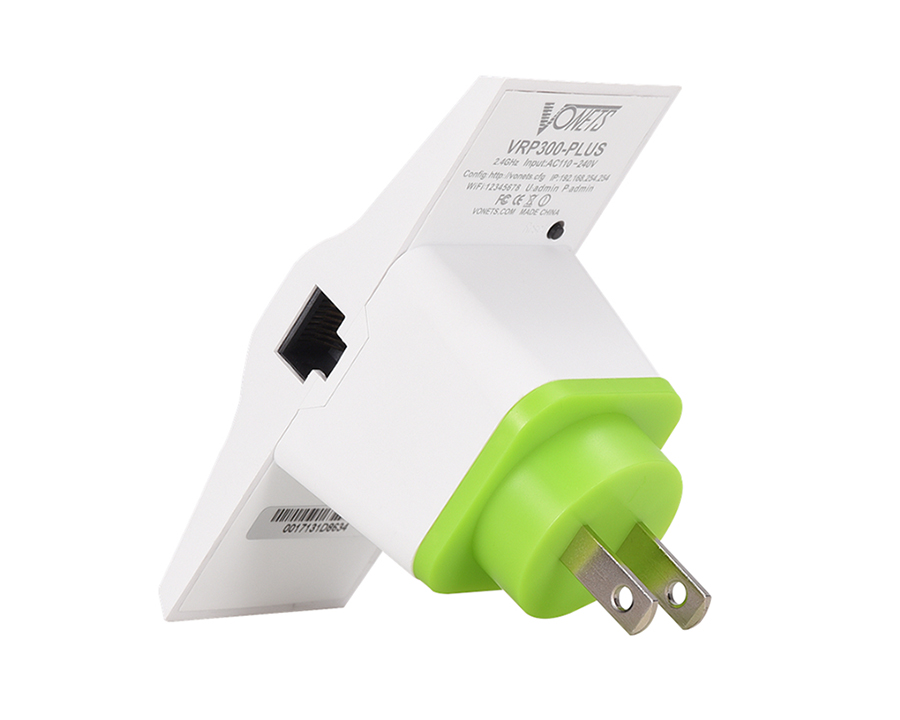

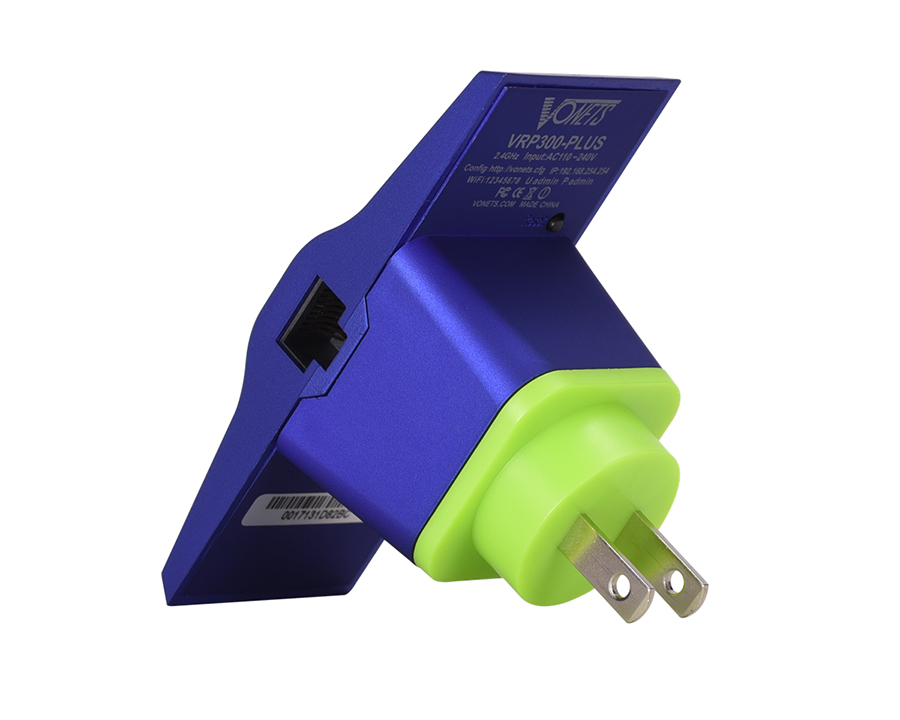

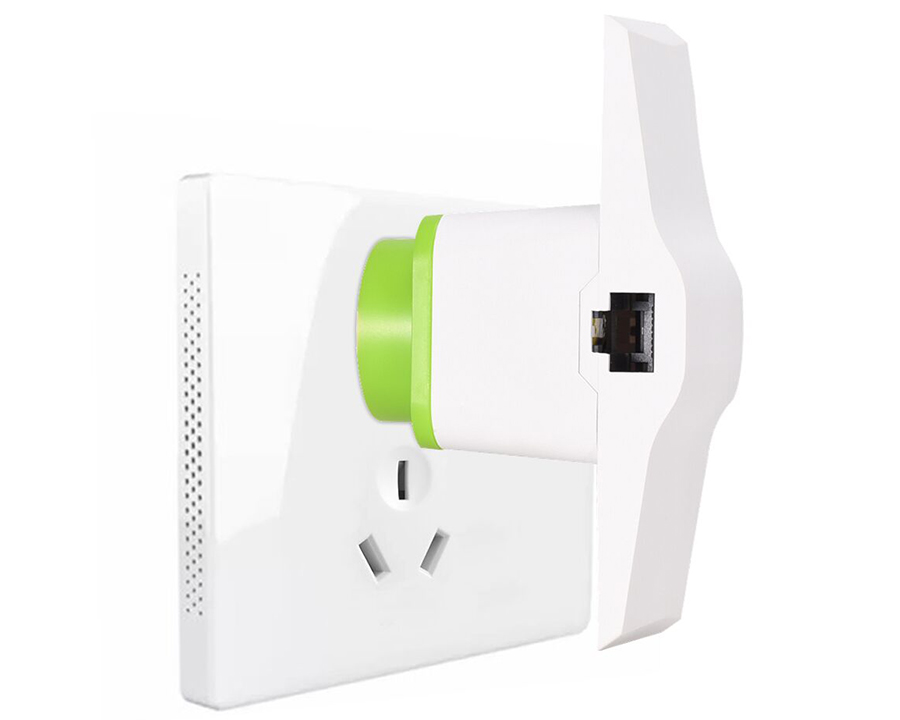

VRP300 PLUS is a professional 300Mbps WiFi repeater/bridge that is elaborately developed by HouTian Network,the original creation D/A temperature compensated auto frequency control technology (TAFC), provides a cleaner wireless environment, reduce the same frequency interference, improve transmission performance, to ensure that the WiFi signal is stable and not dropped.  It is based on 802.11n standard, can extend WiFi Network range, provides the maximum transmission up to 300Mbps, also is compatible with IEEE 802.11B and IEEE 802.11G standard.

  1.Environmental, Safe, Portable;
  2.Support 802.11b/g/n WiFi transmission protocol, 300Mbps rate of transmission;
  3.WiFi intelligent bridge function, Wireless switch wired, wired switch wireless, intelligent switch;
  4.WiFi intelligent repeater mode, it supports WiFi hot spots scan automatically and WiFi hot spot memory function;
  5.Support turning off the WiFi hotspot function;
  6.Support WEB remote firmware upgrade, can get the latest firmware free;
  7.Support 110-240V power supply;
  8. 2 10/100M adaptive Ethernet base;
  9.Adopt the original creation D/A temperature compensated auto frequency control technology (TAFC), make sure the lasting stability that the WiFi signal is not dropped;
  10.Original creation VDNS virtual domain configuration technology to solve the user’s trouble of configuration;
  11.Support connecting more than 20pcs WiFi terminal at the same time;
  12.Support WPA-PSK/WPA2-PSK, 64/128/WEP security mechanism;
  13.Operating temperature: in -25℃ to 55℃ in the normal work environment;
  14.The transmission distance (without obstacle) : 100m;
15. Good compatibility, almost compatible with all smart phones, tablet PCs, laptops, Internet and other WiFi devices.

Hardware Spec

Protocol Standard

 IEEE 802.11g, IEEE 802.11b, IEEE 802.11n

WiFi Transmission rate

 300Mbps

Interface

 2 10/100M adaptive Ethernet base

Button

 Reset button (long press 5s then release)

LED

    Status instruction:

 Ethernet port state;

 2.4G WiFi Indicator Light;

 Hot spot connection state

Antenna

 Built-in 2pcs Smart omnidirectional 2dbm Antennas

Size

 96mm x 40mm x 82mmL x W x H



Wireless Related

Basic Function

 Channel option: 1-14;

 WiFi Hot spot scan automatically;

 WiFi Hot spot memory;

 WiFi Hot spot switches;

 WiFi mode option: 802. 11n only, 802.11 B/G/n mixed,  802.11B/G mixed, 802.11G only, 802.11B only.

Working Mode

WiFi intelligent repeater mode:

Repeater mode (WiFi signal repeater), it can extend the distance of WiFi transfer;

WiFi Intelligent bridge mode.

Wireless Security

64/128/WEP encryption WPA-PSK/WPA2-PSKWPA/WPA2 security mechanism

System Function

Restart device

Reset factory

Administrate account and password revise

Firmware upgrade
